BBLeap Technology Architecture:

System Component

LeapBox

LeapSpace

LeapEye

PWM Nozzle Valves

Primary Function & Specifications

Main ECU hardware regulating rapid-pulsing valves, flow rates, and pressure stability across all nozzles.

Cloud platform for prescription map uploads, live job tracking, automated as-applied mapping, and 4G telemetry.

High-resolution AI camera module for real-time target detection, tree vigor mapping, and spot-spraying triggers.

High-speed solenoid valves mounted at each nozzle body to adjust volume output without changing spray pattern or droplet size.

Core Customer Benefits



  • Massive Chemical Savings: Reduces herbicide and chemical input costs by up to 80–90% in targeted spot-spraying modes by treating only intended targets.



  • Elimination of Crop Burn: Prevents double-dosing and chemical hot-spots in corners, headlands, and overlap zones that can stress growing crops.



  • Speed Flexibility: Allows operators to speed up or slow down without changing nozzle tips or altering drift characteristics.



  • Retrofit ROI: Upgrades older or existing boom sprayers to cutting-edge precision performance at a fraction of the cost of a new machine.


BBLeap is a high-precision, plant-level spraying system developed in the Netherlands that retrofits onto existing sprayers or integrates into OEM builds (LeapEdition). Utilizing high-frequency Pulse Width Modulation (PWM) at every nozzle, BBLeap maintains precise droplet size and application volume regardless of tractor speed, turn angles, or field terrain.



Key Product Features



  • Individual Nozzle Control: Provides 100% individual nozzle pulsing and rate regulation across the entire boom length, eliminating over- and under-dosing.

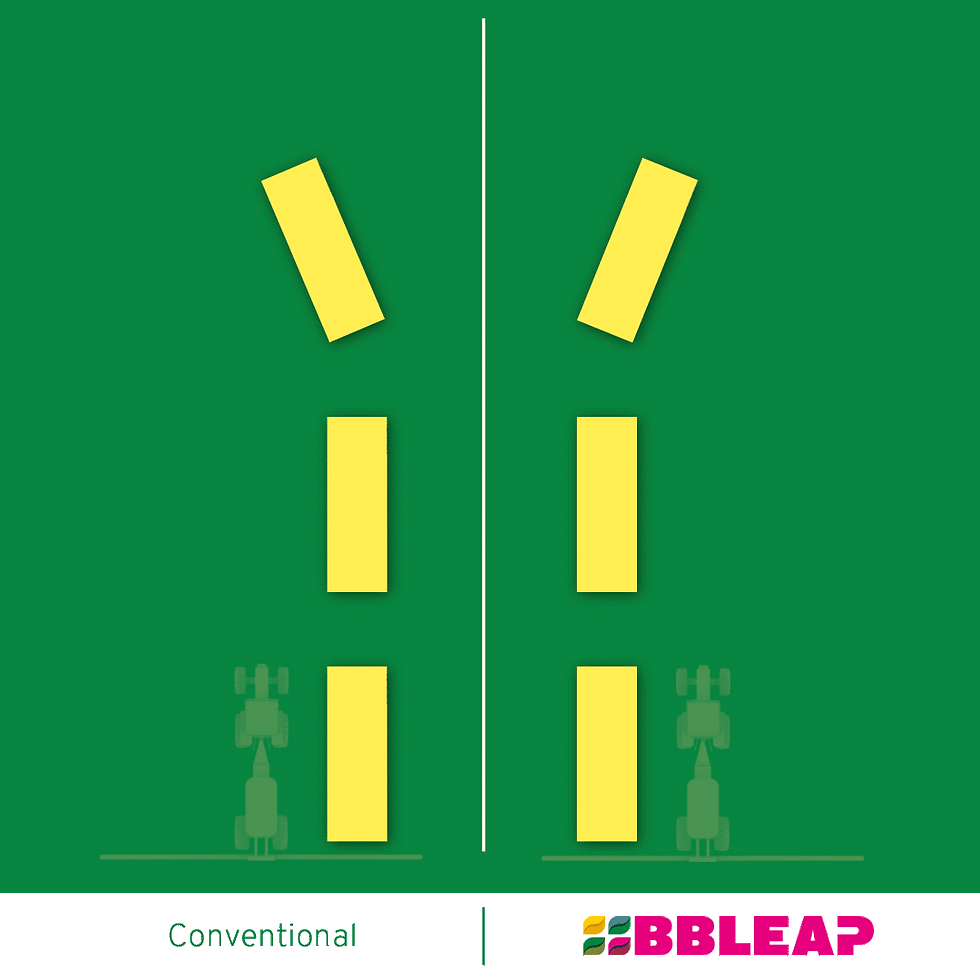

  • Turn & Speed Compensation: Automatically adjusts flow rates on inner and outer boom wings during turns or speed changes to maintain identical application rates across every plant.



  • High-Resolution Spot Spraying: Executes high-definition task maps generated by drones, satellites (e.g., OneSoil), or field scanners to treat specific weeds or crop zones.



  • LeapEye AI Vision (Optional): Integrates real-time optical cameras for green-on-brown weed detection in broadacre and canopy profile detection in orchards.



  • Universal Brand Agnostic: Retargets and mounts to virtually any boom or trailed/self-propelled sprayer regardless of age or manufacturer.
